Description
The price refers to 1 meter of cable. To purchase longer cables, enter the desired length in the ‘quantity’ field.

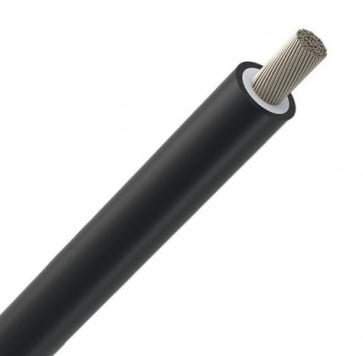

Solar Cable FG21M21 is a flexible cable with insulators and sheath in halogen-free cross-linked compound tested to last over 25 years and withstand a maximum voltage of 1800Vdc to earth. The FG21 Solar Cable is used for connections in photovoltaic systems and can be placed on fixed installations in external or internal environments, without protection or with pipes.
Technical data
- Sheath color: BLACK
- Section: 4 mm 2
- Internal diameter: 2.5 mm
- External diameter: 5.9 mm
- Cable weight: 58.2 Kg / Km
- Rated voltage: 1200 V
- Test voltage: 4000 V
- Maximum operating temperature: +90 + 120 ° C ºC (.)
- Short circuit temperature: 250ºC (.)
- Minimum installation and handling temperature: -40 ° C
- Insulation: Sheath in cross-linked compound
General and regulatory characteristics
- CEI 20-91, CEI 20-91 V1, CEI 20-35, CEI 20-37P2
- EN 60332-1-2, EN 50267-1-2, EN 50267-2-2, EN 60216
- Great smoothness
- High abrasion resistance
- Easy stripping
Typical uses
- Photovoltaic solar panels, wind generators, turbines, electrical systems.
- Within visible, embedded or similar closed systems.
- Fixed or protected installations on or within lighting fixtures.
- Fixed installation in external or internal environments, without protection or in pipes.
