HOYMILES HMS-800 MICROINVERTER MONOFASE 800 W

Disponibilità: Disponibile

Codice Prodotto:HMS-800

Produttore: HOYMILES

Original price was: €400,00.Current price is: €355,00.

Sale!
Share
Sale!

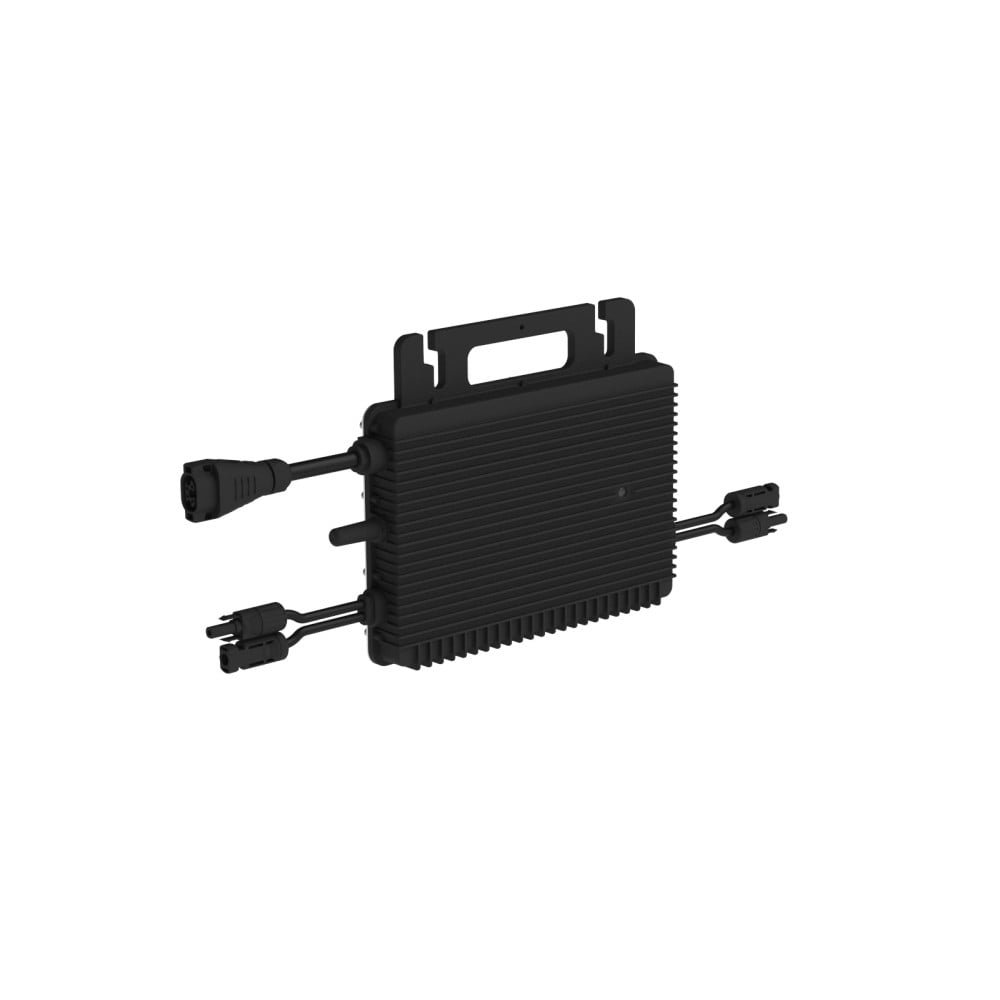

HOYMILES HMS-800 MICROINVERTER MONOFASE 800 W

Disponibilità: Disponibile

Codice Prodotto:HMS-800

Produttore: HOYMILES

Original price was: €400,00.Current price is: €355,00.

Share

Description

Microinverter Hoymiles 800VA – HM-800



Series-connected 2-in-1 microinverter with wide DC input operating voltage range (16 V-60 V) and low start-up voltage (22 V only).
The HM-600/HM-700/HM-800 series 2-in-1 microinverter from Hoymiles is a reliable solution for photovoltaic systems.



Easy to install

Hoymiles microinverters are designed to be ready to use and get your solar ecosystem up and running quickly.

Adjustable energy

Configure your microinverters to suit your installation and the layout of your solar panels.

High reliability

Hoymiles microinverters feature low failure rates and integrated surge protection.

Monitoring support

The microinverters are equipped with an external antenna for improved communication and more stable monitoring.

High efficiency

With an MPPT efficiency rate of 99.8%, most of the output from your photovoltaic panels is converted into usable energy.

Energy conformity

Our microinverters comply with EN50549-1:2019, among other standards.


Features



ModelHM-600HM-700HM-800
Current module power range (W)Up to 380 (single panel)Up to 440 (single panel)Up to 500 (single panel)
MPPT voltage range with maximum power
(V)29 to 4833 to 4834 to 48
Starting voltage (V)22
Operating voltage range (V)16 to 60
Maximum input voltage (V)60
Maximum input voltage (A)
x 11,5x 12,5
Maximum input short-circuit current (A)
x 15
Maximum return current supplying the module (A)
AC
Rated output power (VA)600700
Rated output current (A)
,73 to 220 V.61 to 230 V.50 to 240 V.18 to 220 V.04 to 230 V.92 to 240 V,64 to 220 V
3.48 to 230 V
3,33 to 240 V
Nominal output voltage/range (Hz)220/180 to 275
230/180 to 275
240/180 to 275
Nominal frequency voltage/range (Hz)45 to 55 (under 50 Hz at 220 V and 230 V)
55 to 65 (under 60 Hz at 220 V and 230 V)
Power factor> 0.99 default
0.8 advance…0.8 delay
Output current harmonic distortion<
3%
Maximum number of units per string
to 220 V
to 230 V
to 240 V
to 220 V
to 230 V
to 240 V
to 220 V
to 230 V
to 240 V
EFFICIENCY,
SAFETY and protection
Maximum microinverter efficiency96.70%
Weighted CEC efficiency96.50%
Nominal MPPT efficiency99.80%
Night-time power consumption (mW)<
50
MECHANICAL
Ambient temperature range (°C)
to + 65
Storage temperature range (°C)
40 to + 85
Dimensions (mm)250 x 170 x 28
Weight (kg)
Device sealing indexNEMA 6 outdoor (IP67)
CoolingConvection
natural (without fan)
Pollution levelPD3
CHARACTERISTICS
TopologyHigh-frequency transformers
CommunicationProprietary RF system 2,4 GHz (Nordic)
MonitoringHoymiles monitoring platform
(Hoymiles DTU required)
Warranty12 years (standard)
Conformity
4105:2018, EN 50549-1:2019, VFR2019,
AS 4777.2:2015, IEC/EN 62109-1/-2, IEC/EN 61000-3-2/-3,
IEC/EN-61000-6-1/-2/-3/-4
